As you may have noted from my build thread, I have a full "basement" with drawers under the rest of my build.

I have built drawers and they do go between the wheel wells. The drawer space provides for two 24" x 96" areas, plus another drawer area out the passenger slider.

Rear drawer area: (table stored on one side in this picture... usually another drawer)
Drawers are 2' x 4' and the front drawers slide in in front of the back drawers

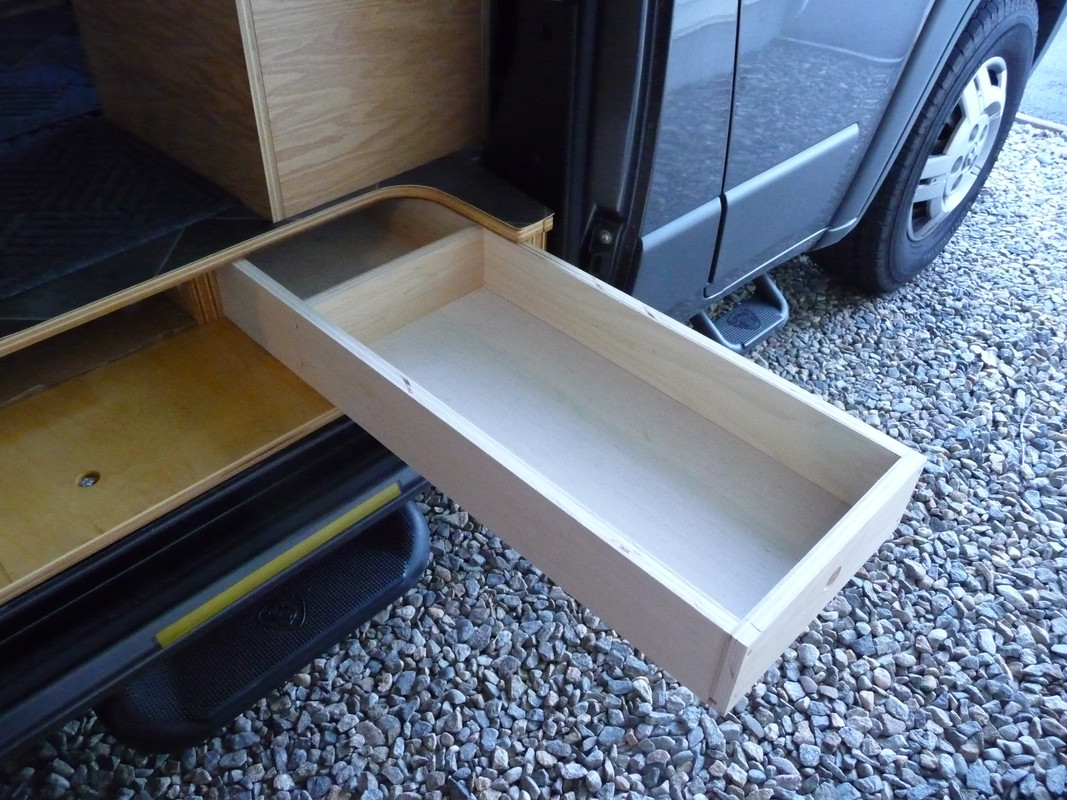

Side door drawer and storage space: (15" x 48" drawer) the space to the left of the drawer is where we keep two folding camping chairs.



Obviously, these drawers are NOT 12" high. The joists are 4 1/2", so the drawers are a bit less in height.

An added benefit of the extra 6" in floor height is that the couches are only 14" high plus 4" cushions, making the seating height 18" which is what most standard seating is!

The amount of additional storage space is really useful to us, and at 5'5", we don't miss the overhead space. This storage allowed us to make much shallower upper cabinets for a wide open feeling inside the van.

I realize that this is not exactly what you're thinking about, but it may spark some ideas for a drawer-ed area in your build!

Joined
·
37 Posts
[
Window trim

On the drivers side window (only one directly in the middle of a wall) I trimmed out the window with a frame to match the wall level. I took a few ideas I've seen in others builds and merged some of the details.

1/2" birch for a frame with 6mm corner gussets to fill in the gap around the motion window frame.





and the final install.
Looks good, I think I will copy that. What did you apply on the wood to where it touches the van metal? I was thinking maybe a double tape for that would work, coupled with screwing it to the outer wood panel


·
Registered
Joined
·
162 Posts
Discussion Starter #125
[Looks good, I think I will copy that. What did you apply on the wood to where it touches the van metal? I was thinking maybe a double tape for that would work, coupled with screwing it to the outer wood panel
You could use some 3m tape on the wall to secure it, I didn't.

I found that by making the trim ring fairly tight to the window trim it stayed in place. Then because the wall panel is curving out at that location between the top and bottom the panel is actually pushing the trim ring in against the wall under pressure. So I just screwed the wall panel to the trim ring on the final install and everything has stayed nice and tight thus far.

Joined
·
37 Posts
Ceiling panels

Next up is fitting the ceiling panels in place. (I already ran the little wire I need, will post about that later). I'm using 5x5 Russian birch for the walls and ceiling
Where did you find 5x5 plywood at? I did not even realize they made 5x5, I’d love to repeat that and not use 4x8. Good job on your build


·
Registered
Joined
·
162 Posts
Discussion Starter #127
Where did you find 5x5 plywood at? I did not even realize they made 5x5, I’d love to repeat that and not use 4x8. Good job on your build
Up here in the Seattle area I got it at Dunn Lumber. It's called Russian Birch ply (comes in metric sizes) and 5x5 panels.


·
Registered
Joined
·
1,549 Posts
[

Looks good, I think I will copy that. What did you apply on the wood to where it touches the van metal? I was thinking maybe a double tape for that would work, coupled with screwing it to the outer wood panel
Where I bought my 5x5 was a cabinet supply store. The 5x5 is a 5x10 cut in half. I used a 5x10 in my floor


·
Registered
Joined
·
162 Posts
Discussion Starter #129
With winter here in the PNW, I started a few projects that I collected on my list last summer. First up was a dish organization solution for my upper cabinet. Just some 1/4" birch ply and glue and staples.



·
Registered
Joined
·
162 Posts
Discussion Starter #130
Next I replaced my inverter. I started out with a Modified Sinewave 1500W unit. But found that my induction stove would not run on it. As I really didn't have many 110v uses other than the stove I figured I might as well upgrade to a puresine model. I did some testing with a kilawat meter and determined that 1000W would be enough for my needs. So I picked up this unit from KISE.



The unit was almost exactly the same size as the old one and fit into the same mounting location with the addition of 4 new holes lined up with the new feet locations. Whew, that was a worry as I not so smartly made my cabinet fairly custom to the inverter size. Lucky for me it all worked out fine.



·
Registered
Joined
·
162 Posts
Discussion Starter #131
Following some leads from others here I decided to add a door light. I took the factory dome light from above the slider door, hacked it apart and removed the wiring connector from the back of it. Now I can re-use the factory plug and harness to make things easy. Then I routed it down the pillar into my small box, added a switch so that one way is always on, one way is switched on by the slider door and then you can turn it off as well. I wired all this up to a super bright yellow LED light and now I have a night time bug light for entry. :)







·
Premium Member
PM 136"HT Gas
Joined
·
6 Posts
Next up I'm working on the upper cabinet over the galley area. This one requires a bit more "fitting" if you will.




The plan is to "hang" it from the corner strip on the ceiling with 4 rivnuts and 1/4-20 bolts. Then secure the lower back edge with sheet metal screws into the horizontal rib behind the wall paneling. Hopefully that's enough, but we will see. I could also pickup one roof rib if needed in the center top, but had not planned to.

As I told my wife, it's for storing potato chips, not bowling balls :)

I'm going to put 2 doors with top hinges and gas struts to hold them up.
Great job and thanks for sharing. This is exactly what I am faced with now and its a bit mind bending. You have given me enough to go with. I will start posting I have a 136 WB also. Thanks!


·
Registered
Joined
·
162 Posts
Discussion Starter #133
Great job and thanks for sharing. This is exactly what I am faced with now and its a bit mind bending. You have given me enough to go with. I will start posting I have a 136 WB also. Thanks!
Nice! Good luck with your build. I just built a second overhead cabinet using mostly the same method as this one. I'm putting it in the rear on the passenger side. It will be open without doors to put baskets in for clothes and other small items.


·
Registered
Joined
·
162 Posts
Discussion Starter #134 (Edited)
I'm working on a bike rack solution to haul an E-Bike and other bikes as needed. I decided on the 1Up rack. It is a nicely engineered all metal rack made in Wisconsin. I really liked that it didn't have lots of plastic parts on it like many of the other racks that I looked at. Seems like it will last much longer. They sell the RakAttach swing arm as the solution for van's to pivot out of the way with the rack.

Once I got it all installed I found that the pivot bolt is just a touch too high to clear the door.





This thing is very stout with secure attachment hardware strong welds and a nice anti-sway setup with the u-bolt secured under the hitch. However the door did't clear. After talking to them they suggested that the bolt could be ground down to gain clearance. So I headed out to the hardware store for a replacement bolt to do surgery on.



The head of the bolt started out at 0.75" and I took it down to 0.2" in the end. This pivot bolt is in sheer load not pulling on the head so this really should not be an issue at all. I will keep an eye on the head over time to make sure it's secure like all the hardware on the rack. And with that thinner bolt, the door now clears just fine.



Here's the rack swung out of the way and the door fully open.



Lastly here's a shot of the bike loaded up on the rack and secured in place.



Hope this helps others that might be considering this option.


·
Registered
Joined
·
162 Posts
Discussion Starter #135 (Edited)
I finished up the rear overhead shelf / cabinet this weekend. The idea was to gain a bit more storage for things without having to lift the beds to get to the underneath storage lockers. I got some fabric cubes from Amazon and then build the shelf around their size. it's secured to the ceiling rib, corner blocks and wall support in a similar way to how I installed the kitchen area cabinet earlier in the build. With the mattress in place I have about 2 inches of clearance to my head even when I stretch as high as possible. So hopefully that works out well in use.







Now my winter list is done. Time to get out and start camping again to build another list for next winter! :)


·
Registered
Joined
·
162 Posts
Discussion Starter #138
I'm not seeing the pictures from your last post on the bike rack. Not sure if it's just me?
OOPS, Try now! Thanks for the heads up. I accidentally used google photos for the upload and it didn't work. I had forgot that I was hosting all my images on my van.karmy.com site which is more open. Should all be working now!


·
Registered
Joined
·
39 Posts
Nice job! What is the dimensions of your new upper cabinet? They look like they are about 10" deep?


·
Registered
Joined
·
162 Posts
Discussion Starter #140
What is the dimensions of your new upper cabinet? They look like they are about 10" deep?
I designed it around the bins to get 4 of them to fit. Those bins are 11" wide and 10" deep So the shelf is 45 wide to fit 4 and it's about 11" deep. I found I had to make it wide enough to accommodate the top of the bins as the sidewall starts to curve in. So the shelf is actually a bit wider than the 10" bins.
